Day 1 - Transformer Architecture
Attention is all you need
- transformer architecture deep dive and BERT model training for content categorization
Created Jul 23, 2025 - Last updated: Jul 23, 2025

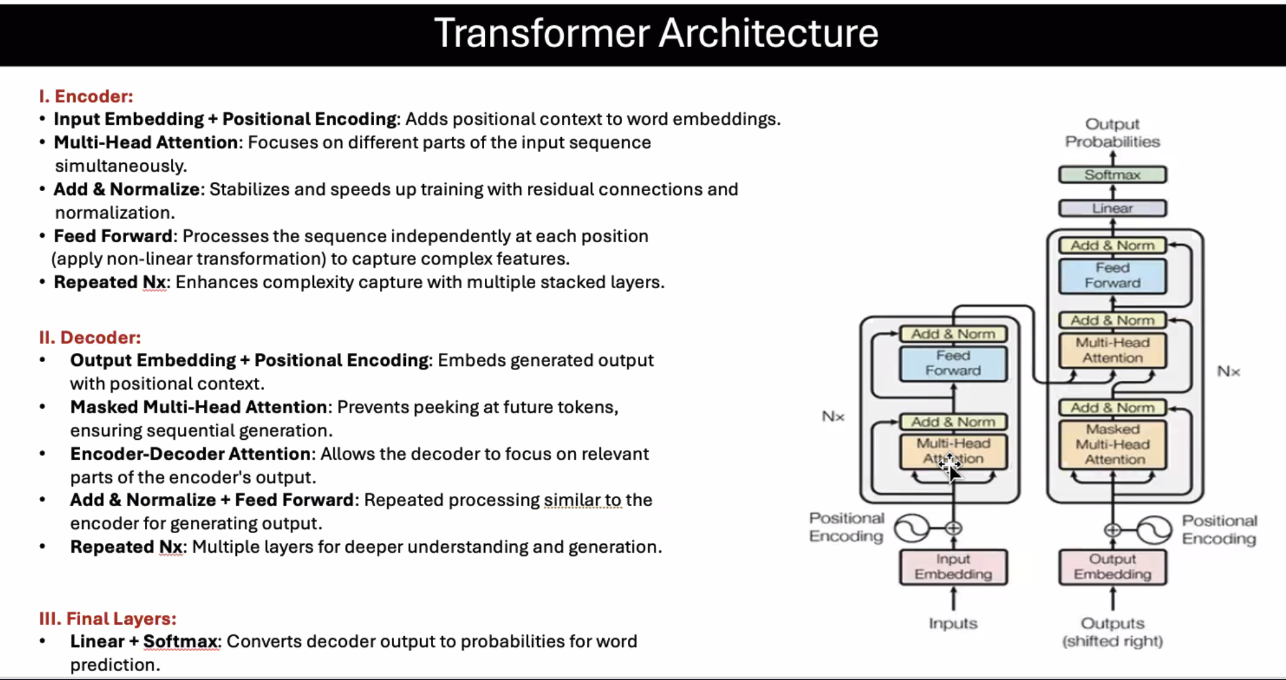

Transformer Architecture Overview

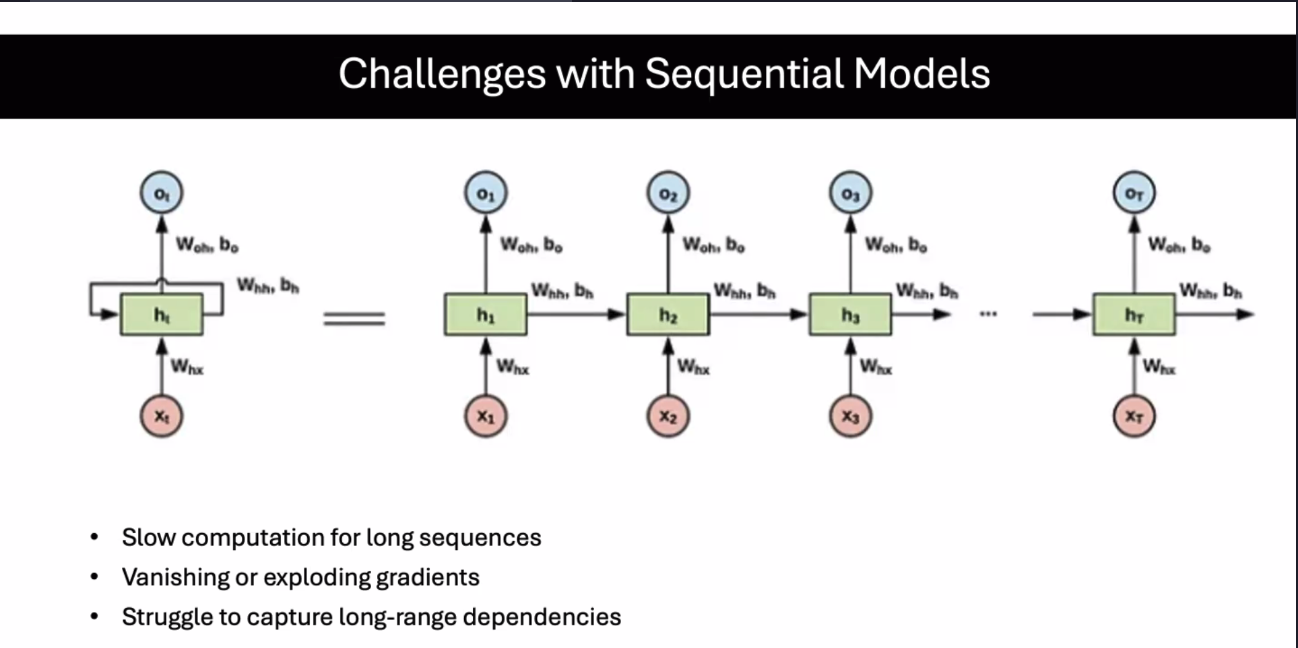

The Transformer represents a revolutionary neural network architecture that has fundamentally replaced traditional RNNs and LSTMs in modern natural language processing. Its core advantage lies in its ability to process all tokens in a sequence simultaneously through parallel computation, rather than the sequential processing required by earlier architectures. This breakthrough has made Transformers the foundation for all modern large language models, including GPT, BERT, and their variants.

The key innovation driving this success is the self-attention mechanism, which allows each word in a sentence to dynamically focus on and attend to relevant parts of the entire input sequence. This mechanism operates through three learned matrices: queries (Q), keys (K), and values (V), which work together to compute complex relationships between words. Unlike traditional models that struggle with long-range dependencies, the self-attention mechanism can capture relationships between words regardless of their distance in the sequence, enabling more sophisticated understanding of context and meaning.
Self-Attention Mechanism Deep Dive

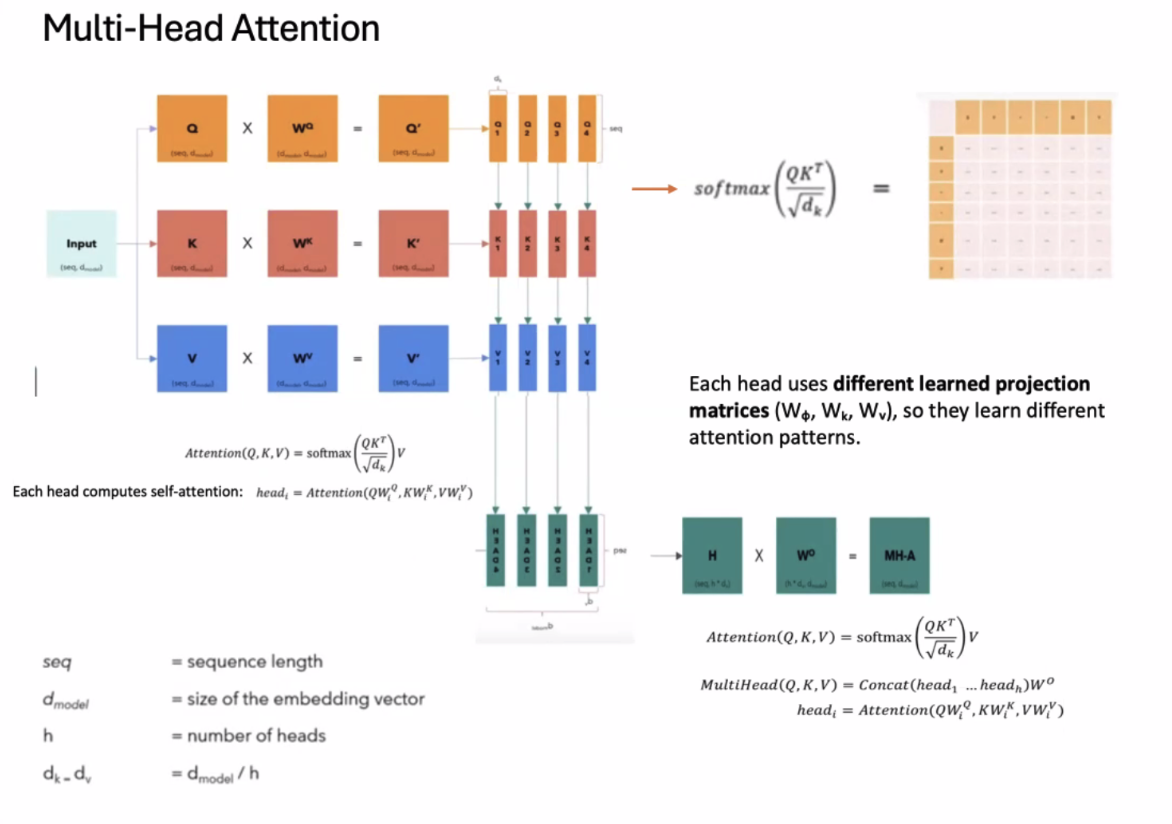

The power of self-attention is further amplified through multi-head attention, which provides multiple different perspectives on the relationships within a sequence. Each attention head learns to focus on different aspects of language understanding—some heads might specialize in syntactic relationships, others in semantic meaning, and still others in structural patterns. These multiple attention heads are then concatenated and passed through a linear transformation to create a rich, multifaceted representation of the input.

Since Transformers abandon sequential processing entirely, they require an alternative method to understand word order and position. This is achieved through positional encoding, which adds crucial position information directly to the word embeddings. The model uses sophisticated sine and cosine functions to encode positional information in a way that preserves the meaning of the original word embeddings while providing the model with an understanding of where each word appears in the sequence.

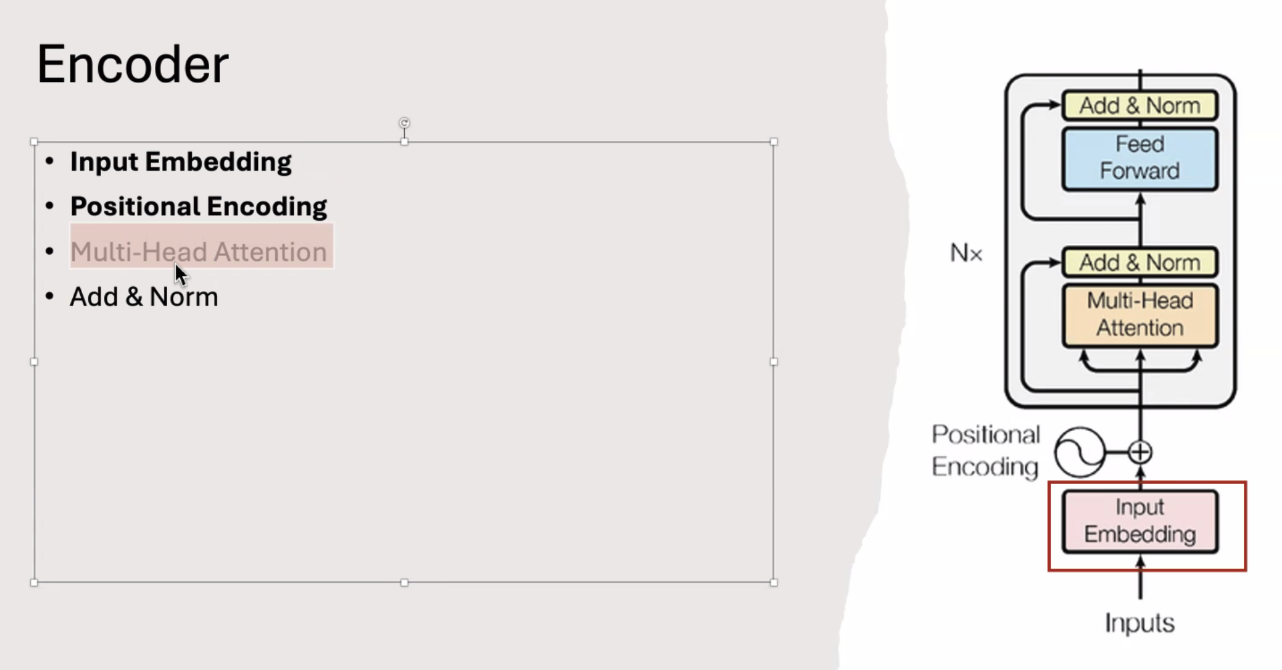

Encoder Architecture Components

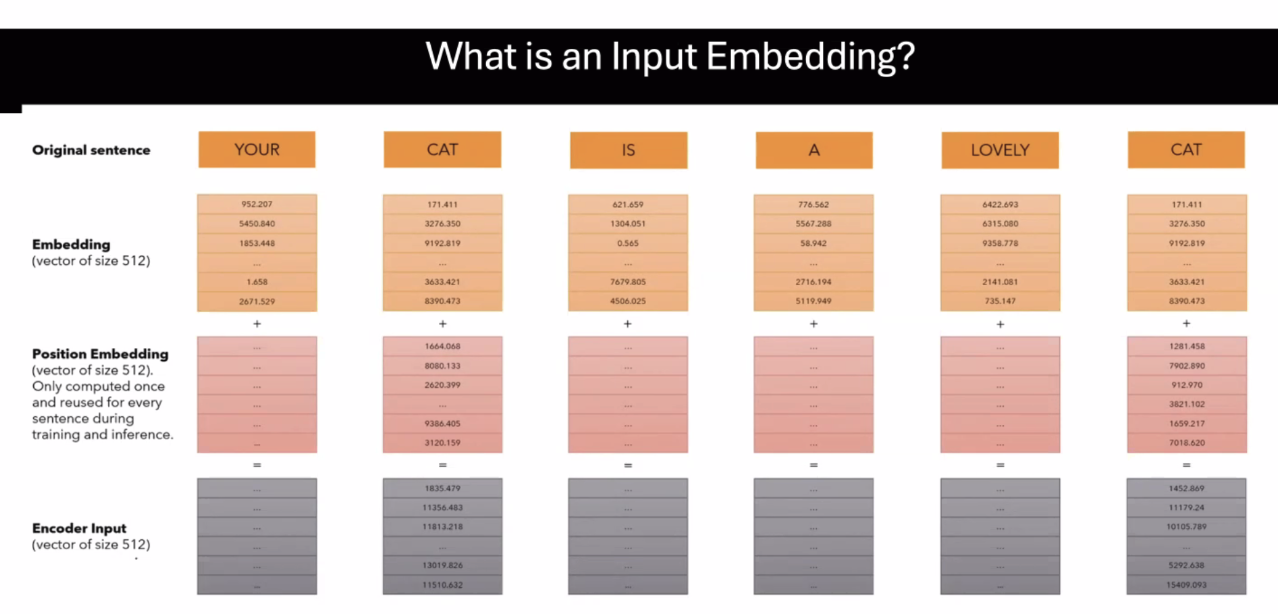

The encoder architecture begins with input embedding combined with positional encoding, which transforms raw words into numerical representations that include both semantic meaning and positional information. This creates a foundation that the model can mathematically process while maintaining awareness of word order and context.

The multi-head attention layer enables each word to develop a sophisticated understanding of its relationships with every other word in the sequence. This allows the model to capture complex linguistic phenomena such as subject-verb agreement, pronoun resolution, and semantic dependencies that may span across long distances in the text.

Following the attention mechanism, a feed-forward neural network processes each word position independently. This component is crucial for converting the linear attention outputs into nonlinear representations, adding layers of complexity and abstraction that enable the model to understand nuanced patterns and relationships through its hidden layers.

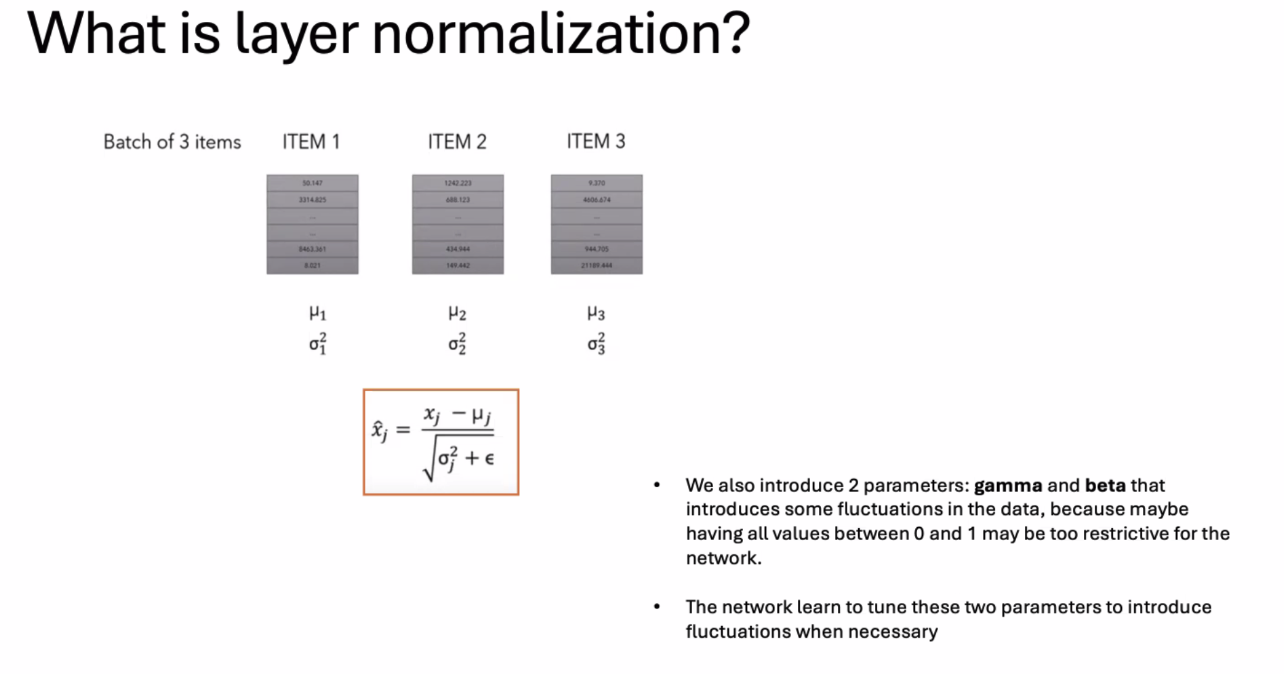

Layer normalization, implemented through “add and normalize” connections, plays a vital role in stabilizing the training process. It normalizes the mean and variance of activations while including learnable gamma and beta parameters that provide the model with flexibility to adjust the normalization as needed. This technique prevents the vanishing gradient problem that plagued earlier deep networks and significantly accelerates convergence during training.

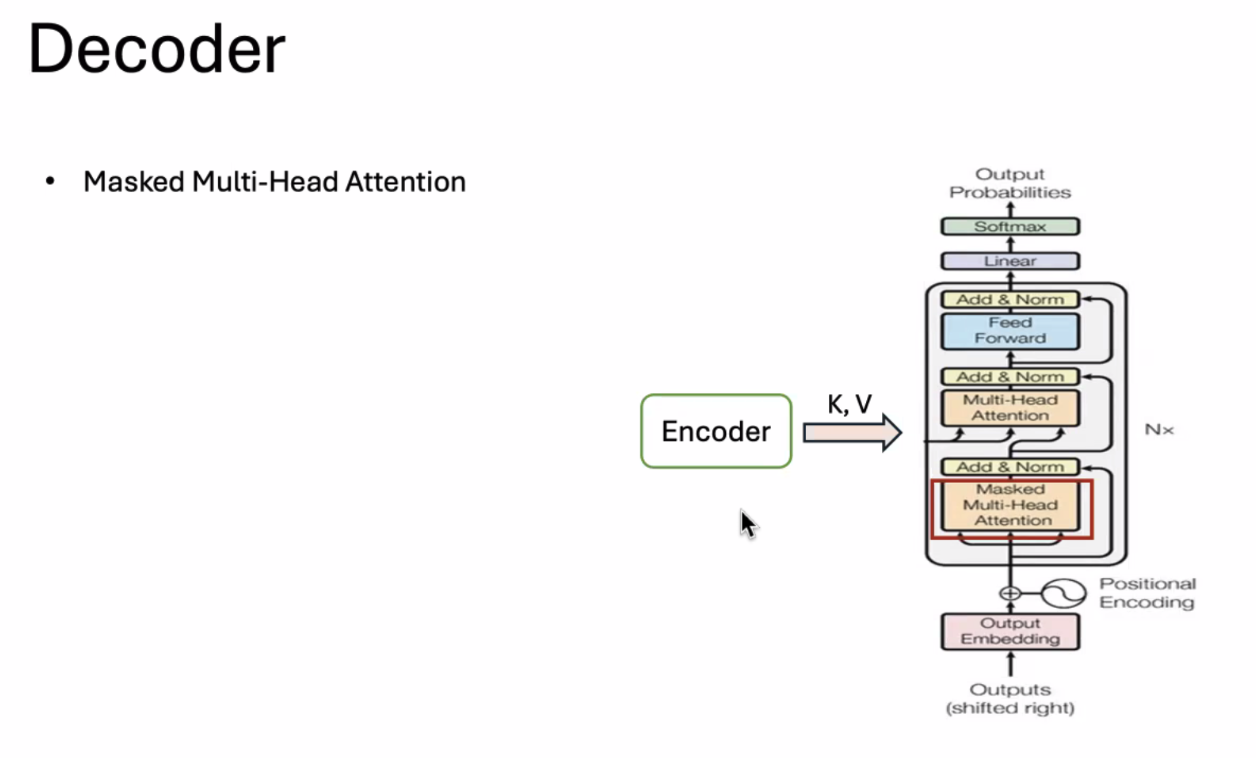

Decoder Architecture & Masking

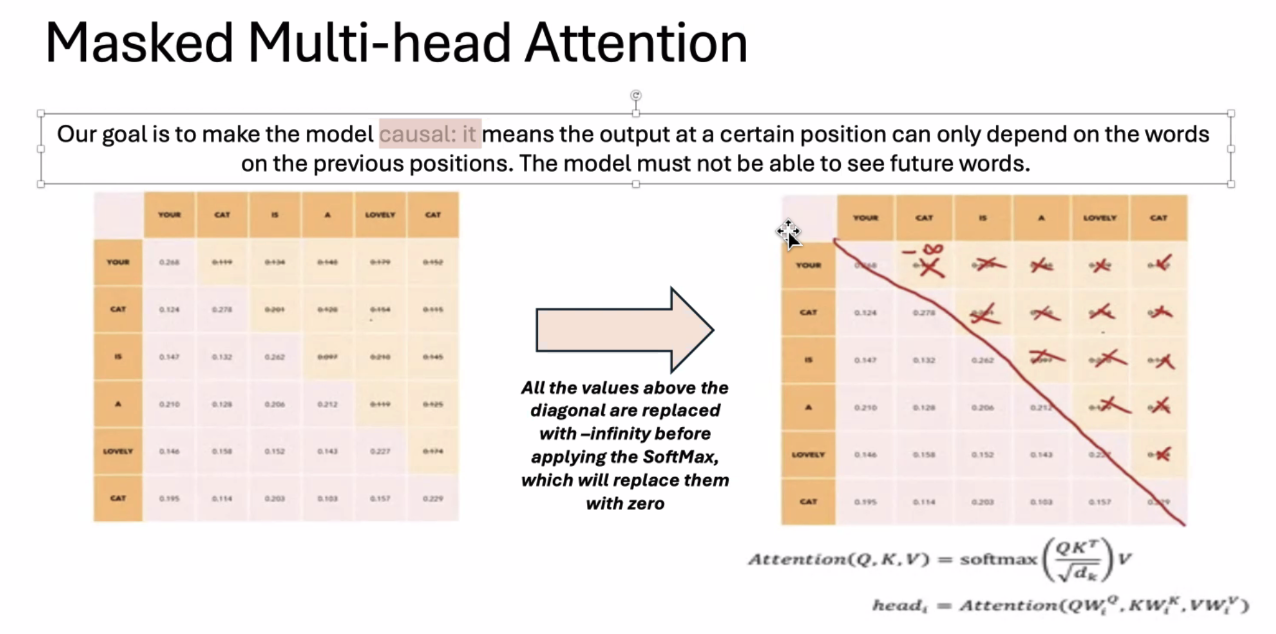

The decoder architecture introduces a crucial modification through masked multi-head attention, which prevents the model from “cheating” during training by ensuring it cannot see future tokens when predicting the next word. This masking mechanism makes the model causal, meaning that the output at any position can only depend on the known previous positions, not on future information that wouldn’t be available during actual inference.
The masking is implemented by setting future positions to negative infinity before applying the softmax function, which effectively converts these positions to zero probability. This prevents data leakage and ensures that the model learns to generate text based solely on the context it has seen up to the current position.

Cross-attention represents another key innovation that connects the encoder and decoder components. Through this mechanism, the decoder learns to focus on the most important and relevant parts of the encoder’s output representation. This cross-attention enriches the decoder’s understanding by allowing it to selectively attend to different parts of the input sequence, leading to more accurate and contextually appropriate text generation.
Training vs Inference Modes

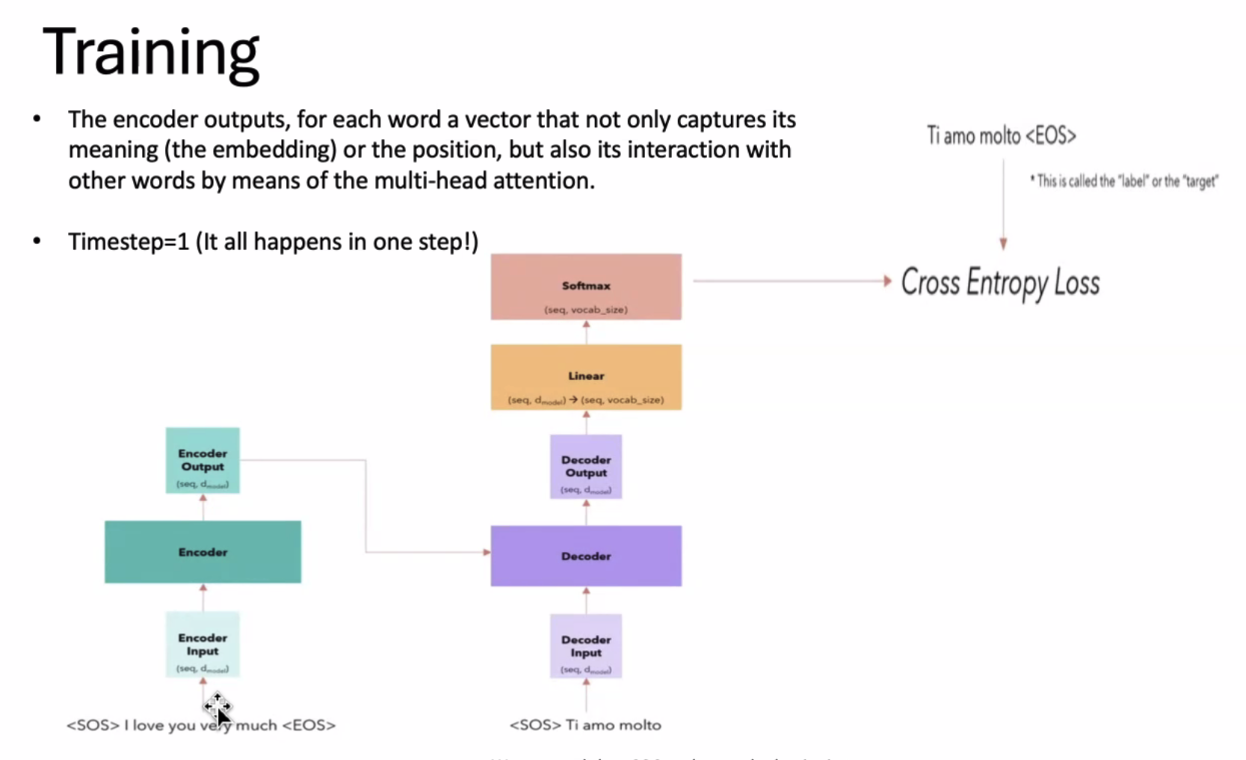

The Transformer architecture operates in two distinct modes, each with its own unique characteristics and processes. During training mode, the model engages in supervised learning where it uses ground truth translations or target sequences during the learning process. The model applies masking to prevent seeing future tokens, ensuring that it learns to make predictions based only on available context. The training process involves comparing the model’s predictions with the correct answers using cross-entropy loss, and then adjusting the network weights iteratively through backpropagation until the model converges to optimal performance.

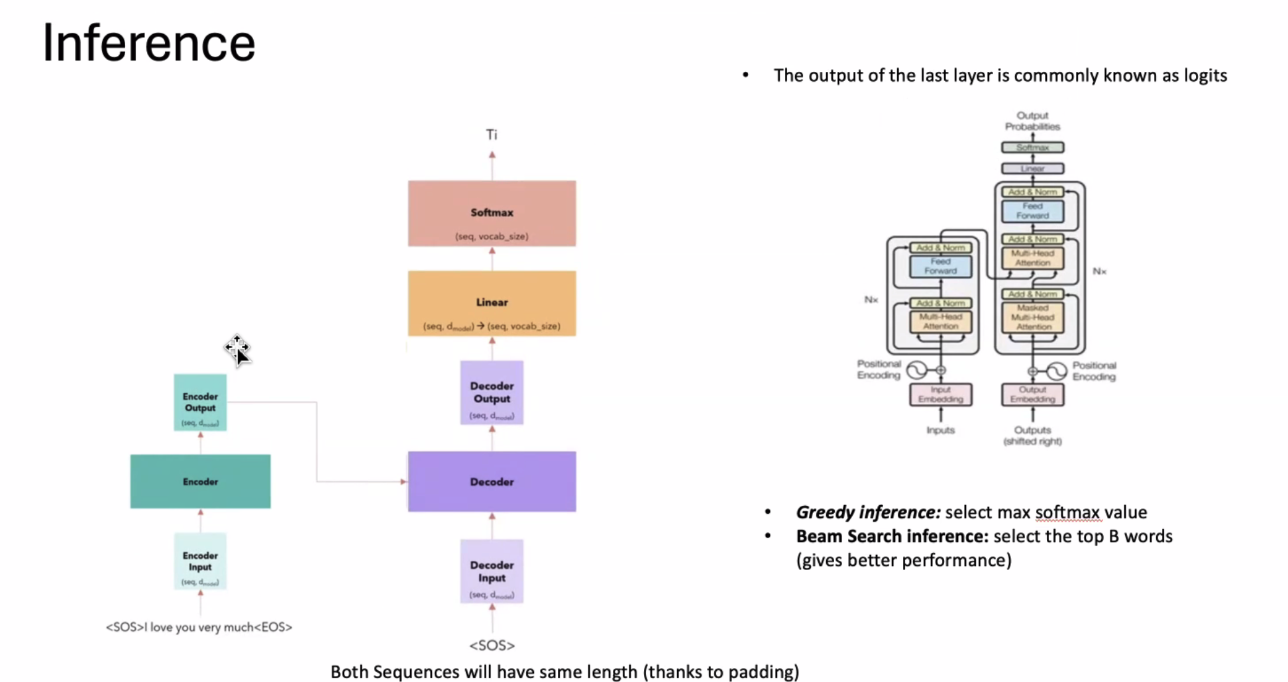

In contrast, inference mode represents the model’s operational phase where it uses its trained weights to generate new content. During this phase, the model processes one token at a time during generation, building up the output sequence incrementally. The model employs various word selection algorithms to determine the next token: greedy search simply selects the word with the highest probability at each step, while beam search explores multiple possibilities simultaneously to maintain creativity and find more optimal sequences.

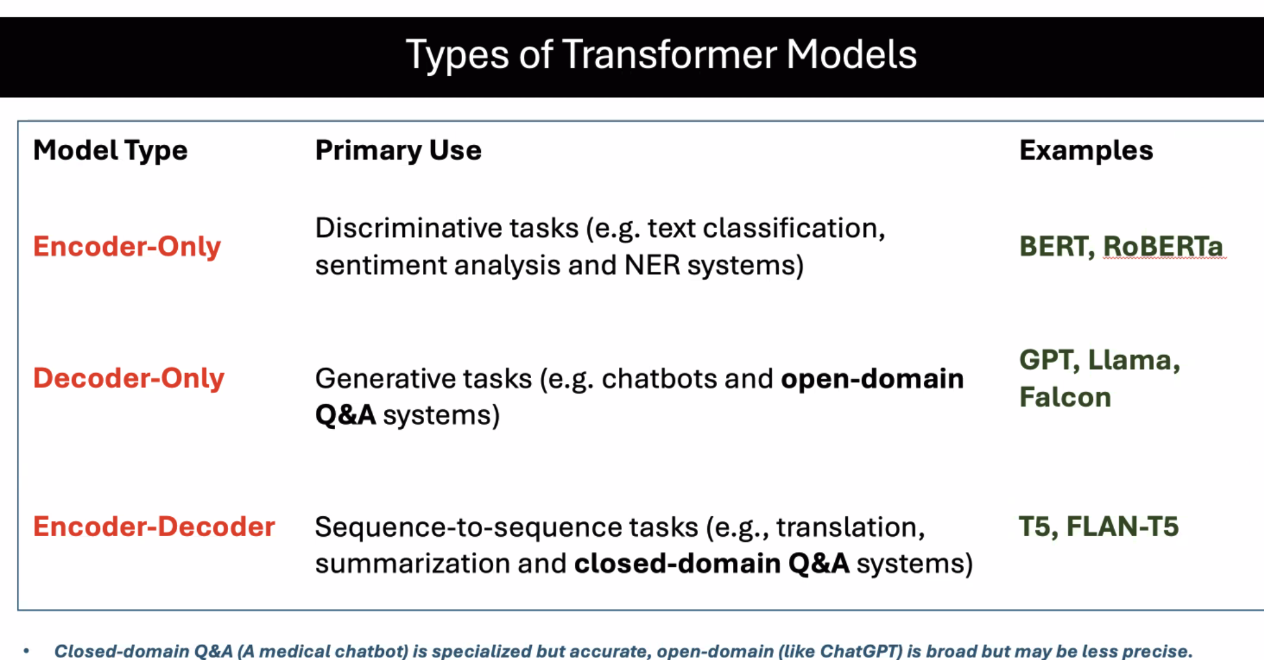

Transformer Model Types & Use Cases
Different variants of the Transformer architecture have been developed to excel at specific types of tasks. Encoder-only models, such as BERT and RoBERTa, are optimized for discriminative tasks including classification and sentiment analysis. These models excel at Natural Language Understanding (NLU) tasks where the goal is to comprehend and categorize existing text rather than generate new content.

Decoder-only models, exemplified by the GPT family, are specifically designed for generative tasks such as chatbots and content generation. These models demonstrate exceptional strength in text generation and completion tasks, making them ideal for applications that require creating new text based on given prompts or contexts.
Encoder-decoder models, including T5 and BART, represent the most complex variant and are best suited for sophisticated tasks such as translation and specialized question-answering systems. These models are particularly valuable for closed-domain applications in fields like medicine and law, where both deep understanding and precise generation are required.

Case Study
The notes below relate to a Jupyter notebook and case study that I will attach later, with thorough explanations. Here are some preliminary takeaways:
BERT Content Categorization Use Case
The news industry faces significant challenges with the overwhelming volume of content requiring manual categorization, making automated classification systems essential for efficient content management. A practical implementation involved training a BERT model on a dataset of 4,076 articles spanning six categories, though the dataset exhibited significant bias with sports articles comprising approximately 53% of the total content.
The implementation followed a systematic approach beginning with comprehensive data preprocessing, including lowercase conversion and tokenization using BERT’s specialized tokenizer. The dataset was divided using a stratified train/validation/test split with an 80/10/10 ratio to ensure representative sampling across all categories. Label encoding was applied to convert categorical targets into numerical format suitable for machine learning, and TensorFlow datasets were created with appropriate batching for efficient processing. To address the class imbalance problem, class weights were calculated and applied during training to ensure fair representation of underrepresented categories.
The model configuration leveraged BERT’s base architecture with its 109 million parameters, requiring careful hyperparameter tuning including a very small learning rate appropriate for fine-tuning large language models. The Adam optimizer was paired with sparse categorical cross-entropy loss, and training was conducted over three epochs while monitoring accuracy metrics. This careful configuration resulted in impressive performance with over 95% accuracy on the test set and a weighted F1-score of 96%.
Performance Analysis & Recommendations
The model’s performance analysis revealed strong diagonal patterns in the confusion matrix, indicating effective classification across most categories. Sports and news categories achieved the highest prediction accuracy, which correlates directly with their higher representation in the training dataset. This outcome highlights both the model’s capability and the importance of balanced training data.
Several recommendations emerge from this analysis for improving future implementations. Increasing representation of underrepresented categories would likely improve overall model fairness and performance across all classes. Addressing temporal bias, where most articles originated from 2021, could enhance the model’s generalization to content from different time periods. For applications requiring higher accuracy, hyperparameter tuning could provide additional performance gains. Finally, when working with imbalanced datasets, weighted average metrics provide more meaningful evaluation than simple accuracy, as they account for the varying importance of different classes in the overall performance assessment.
